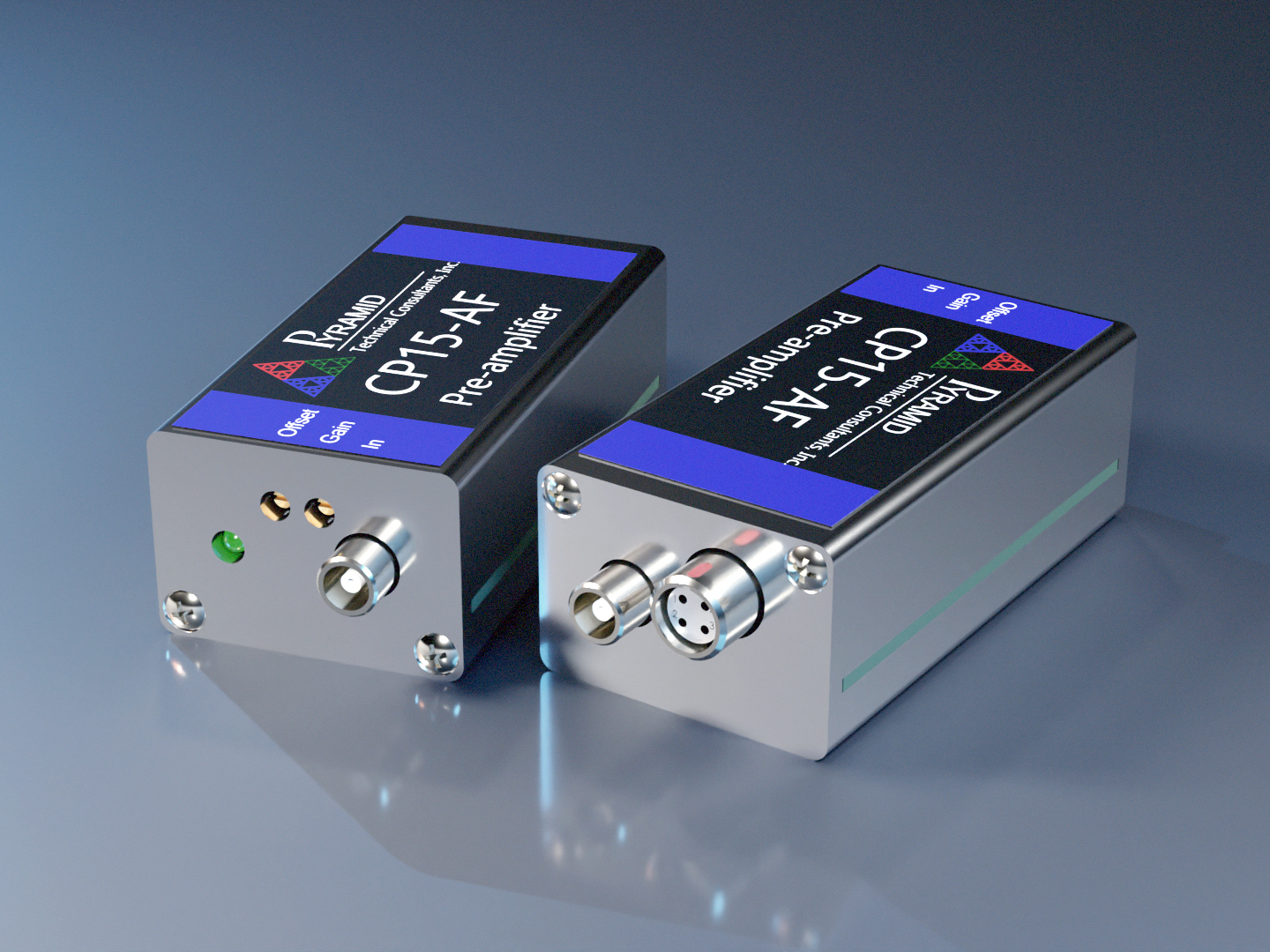

CP15 - DC-Coupled Pulse Pre-amplifier for Lanthanum Halide and Sodium Iodide Detectors

The CP15 is a compact and cost-effective pre-amplifier available in two versions. The CP15AF model is designed for use with sodium iodide scintillation detectors. It features built-in filtering matched specifically to photomultiplier-based NaI detectors. The CP15AL model is designed for use with the much faster LaCl3, LaBr3, YAP and plastic scintillation detectors. It features built-in filtering matched specifically to photomultiplier-based La halide detectors.

For energy spectroscopy applications, also consider the CR10. This is a fully-featured pulse amplification and shaping product available with a very wide selection of conversion gain, pulse shaping times and the option for baseline restoration see the CR10.

Pair the CP15 with the C400 high-speed pulse counter which supports up to four preamplifiers in any combination.

Base Price$730.00
Subtotal$730.00

Features - CP15AF

  • 1000 mV peak voltage pC-1 at maximum gain setting into 50 ohm
  • Rise time 640 nsec, full width at 10% of maximum 3.6 µsec
  • Optimized filtering for clean NaI detector pulses
  • Very compact package about the size of a matchbox
  • DC-coupled and 50 ohm matched
  • Fine gain and offset adjustment pots
  • Choice of inverting or non-inverting via jumper
  • Lemo 00 signal in and out connectors

Applications - CP15AF

  • Readout of sodium iodide scintillation/photomultiplier detectors
  • Pulse counting applications
  • Pulse height analysis applications
  • Spectroscopy preamplifier
  • Companion to the C400

Features - CP15AL

  • 550 mV peak voltage pC-1 into 50 ohm at maximum gain setting
  • Risetime <12 nsec, full width at 10% of maximum 25 nsec
  • Optimized filtering for clean La halide detector pulses
  • Very compact package about the size of a matchbox
  • DC-coupled and 50 ohm matched
  • Fine gain and offset adjustment pots
  • Choice of inverting or non-inverting via jumper
  • Lemo 00 signal in and out connectors

Applications - CP15AL

  • Readout of lanthanum halide and other fast scintillation detectors
  • Pulse counting applications
  • Pulse height analysis applications
  • Spectroscopy preamplifier
  • Companion to the C400
