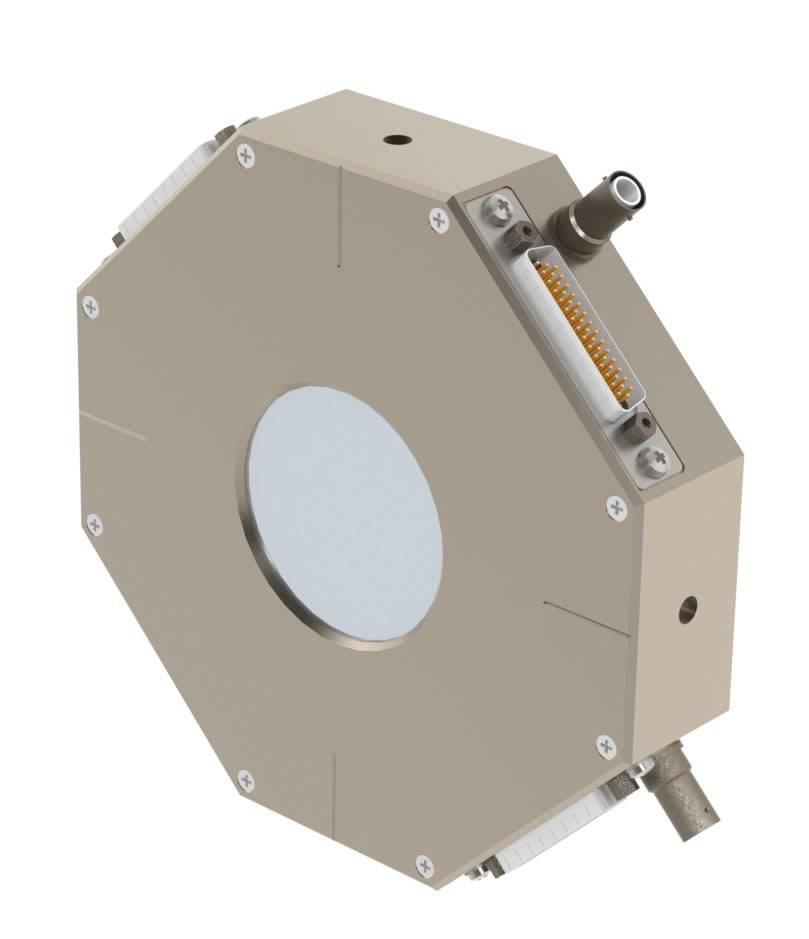

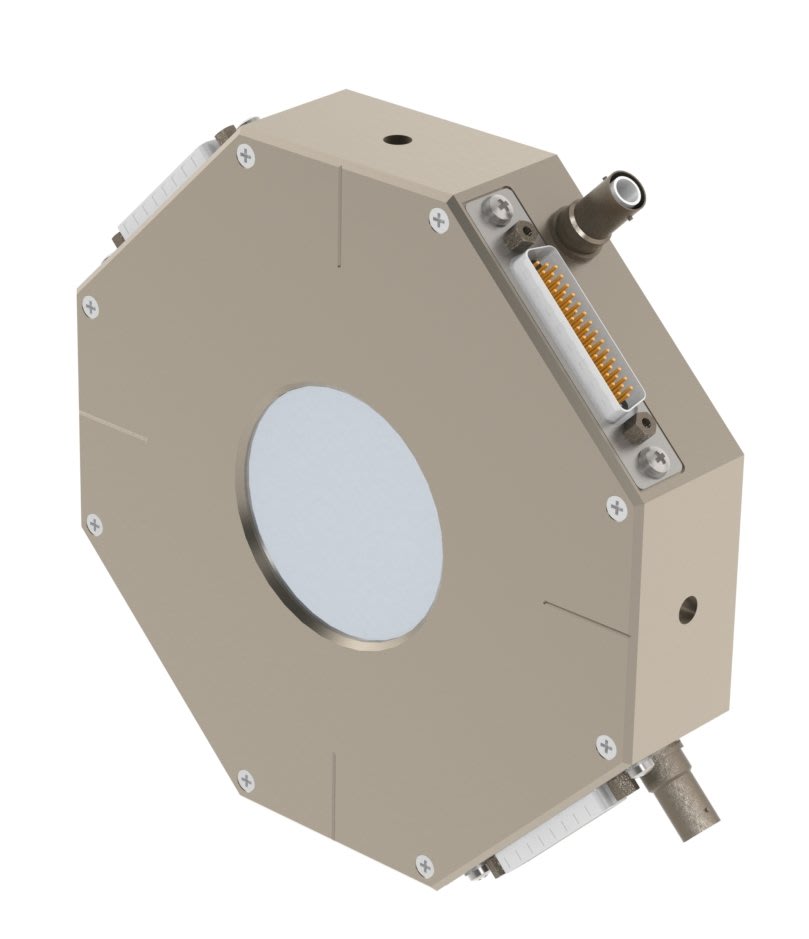

PX-2 - 120 Pixel Ion Chamber
The PX-2 is a precision pixelated 2D ionization chamber offering true two-dimensional beam shape and position monitoring via 120 individual pixels over a circular 42 mm sensitive area. With robust thin-FR4 electrode construction, a compact insertion length and low water-equivalent thickness (< 400 µm), it enables high-accuracy beam diagnostics with minimal scattering. Designed for beamline integration, the PX-2 is compatible with standard read-out electronics and provides reliable performance for high-energy ion beam applications.
This product is no longer recommended for new designs. See alternative products bellow or contact Pyramid for more information.
Alternative Products
I128 - 128 Channel Charge Integrator Digital ElectrometerDownloads
Features
- 42 mm diameter sensitive area
- Compact package
- Robust thin FR4 electrodes
- HV loopback
Applications
- High energy ion beamline setup and tuning
- True 2-D beam characterization
- Particle therapy isocenter diagnostics
Pixelated Detectors
Pixelated detectors offer many advantages over strip detectors as they are capable of determining beam shape without ambiguity.
- High precision pixels on gold film provide excellent reliability
- Fine resolution data enable confidence in beam quality
- Compliments the strengths of the gamma index
Integrated Environment Sensors
Our ion chambers include integrated sensors for dynamic corrections. No need for inconvenient external instruments.
- Humidity, temperature, and pressure sensors
- Replaceable camber desiccant
Expertly Built
Electrodes etched with unique laser technology. Assembled and tested by highly skilled technicians in our USA facility.
- Rigorously tested beyond the operating range for uniformity
- Tested with real radiation sources
- White glove treatment from start to finish
- Full documentation provided for each instrument
