IX256 - 256-Channel Charge Integrating Electrometer with HV Power Supply

The IX256 is Pyramid’s latest high-density electrometer, designed to deliver exceptional performance in a compact form factor. With 256 independent low-current input channels, it offers unparalleled channel density for customers who need efficient space utilization and minimal cabling.

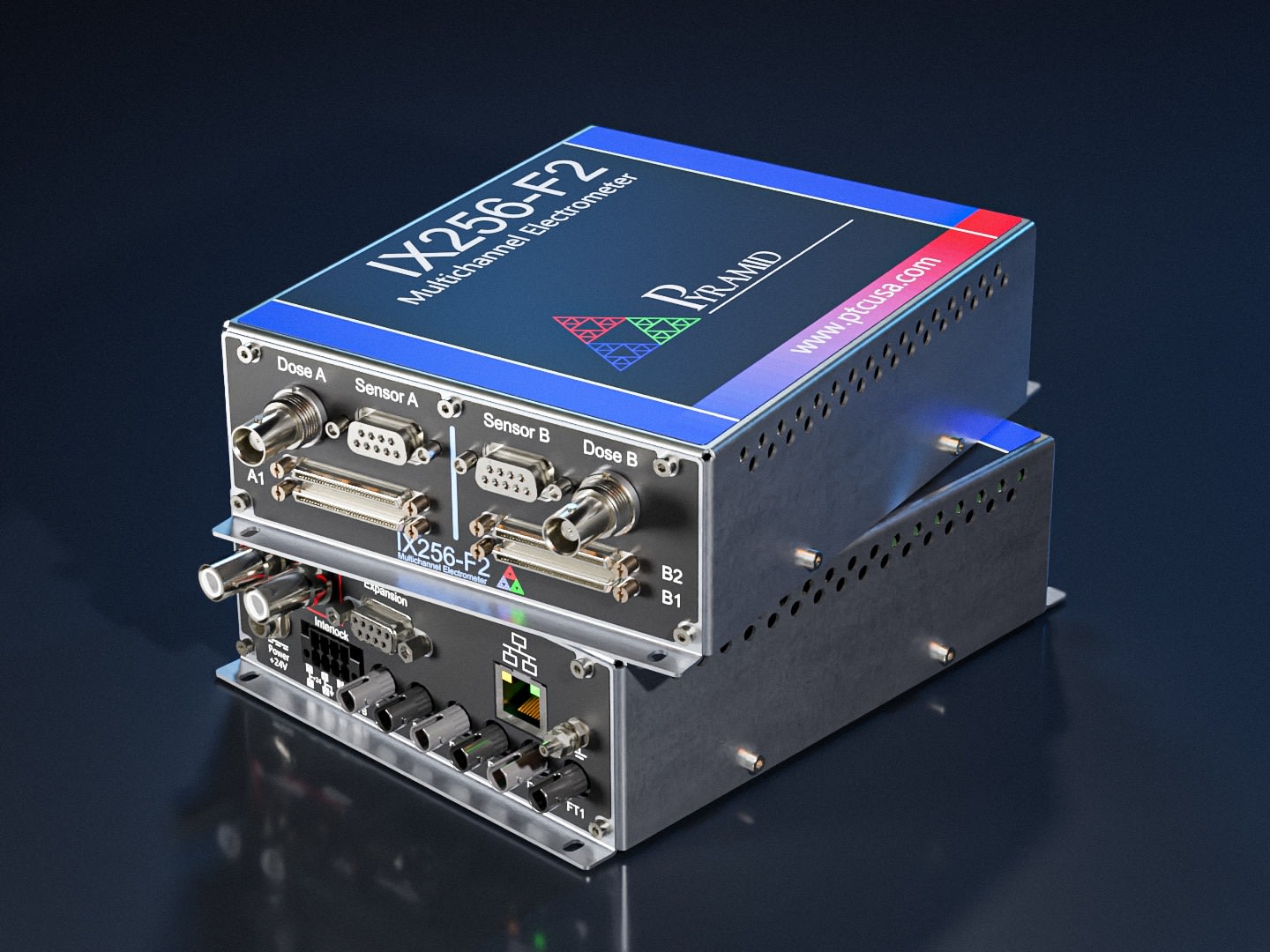

The IX256 supports a variety of mezzanine options that expand its capabilities. For example, the IX256-F2 adds two additional bipolar current inputs with wide dynamic range and 100 kHz sampling, ideal for capturing high-speed signals in perfect synchrony with the 256 standard low-current channels.

12 Tuần Thời Gian Dẫn Đầu

Features

  • 256 independent low-current input channels
  • Current input range from 1 pA to 50 µA
  • Selectable integration frequencies from 1 Hz to 10 kHz
  • Data rates up to 6000 samples per second for all 256+ channels
  • Expandable with mezzanine modules for additional high-speed inputs
  • Integrated high-voltage power supply up to ±3000 V

Applications

  • Pencil beam scanning in proton therapy
  • Readout for detector imaging arrays

Gói Phần Mềm Hiện Đại

  • Dựa vào Hệ điều hành thời gian thực QNX để có hiệu suất và ổn định tuyệt vời
  • Thu thập dữ liệu và kiểm soát đáng tin cậy với API JSON HTTP/Websocket
  • Nhập/xuất toàn diện thông qua máy chủ EPICS nhúng, mạnh mẽ
  • Giao diện người dùng trang web tiên tiến để trực quan hóa dữ liệu và cấu hình
  • Khả năng phát hiện mạng nâng cao bằng cách sử dụng Universal Plug and Play

Dose Controller

A dose controller is a smart electrometer that not only measures dose but actively controls beam delivery to reach a target dose.

  • Closed-loop dose control - Our electrometers drive your accelerator to hit target dose automatically.
  • Single or multipoint control - Supports both fixed and scanning beam systems, including pencil beam spot control.
  • Ready out of the box - No custom FPGA or PLC code required.
  • Flexible integration - Full control via the IGX software API.
  • Field-proven - Deployed in clinical, research, and industrial systems worldwide.
