G2 Diagnostic is the configuration and monitoring tool for Pyramid's G2 generation devices: electrometers, loop controllers, and I/O modules alike, on Windows or Linux. It discovers units already on the network and gives each one a live view of its channel data, high voltage, dose, and digital I/O, with dedicated panels for calibration, real-time processing, and interlocks.

This tool is for maintaining existing G2 installations. If you're specifying a new system, look at the MX1 or other IGX based devices instead: they ship with an embedded web GUI, so there is no separate application to install or maintain.

Features

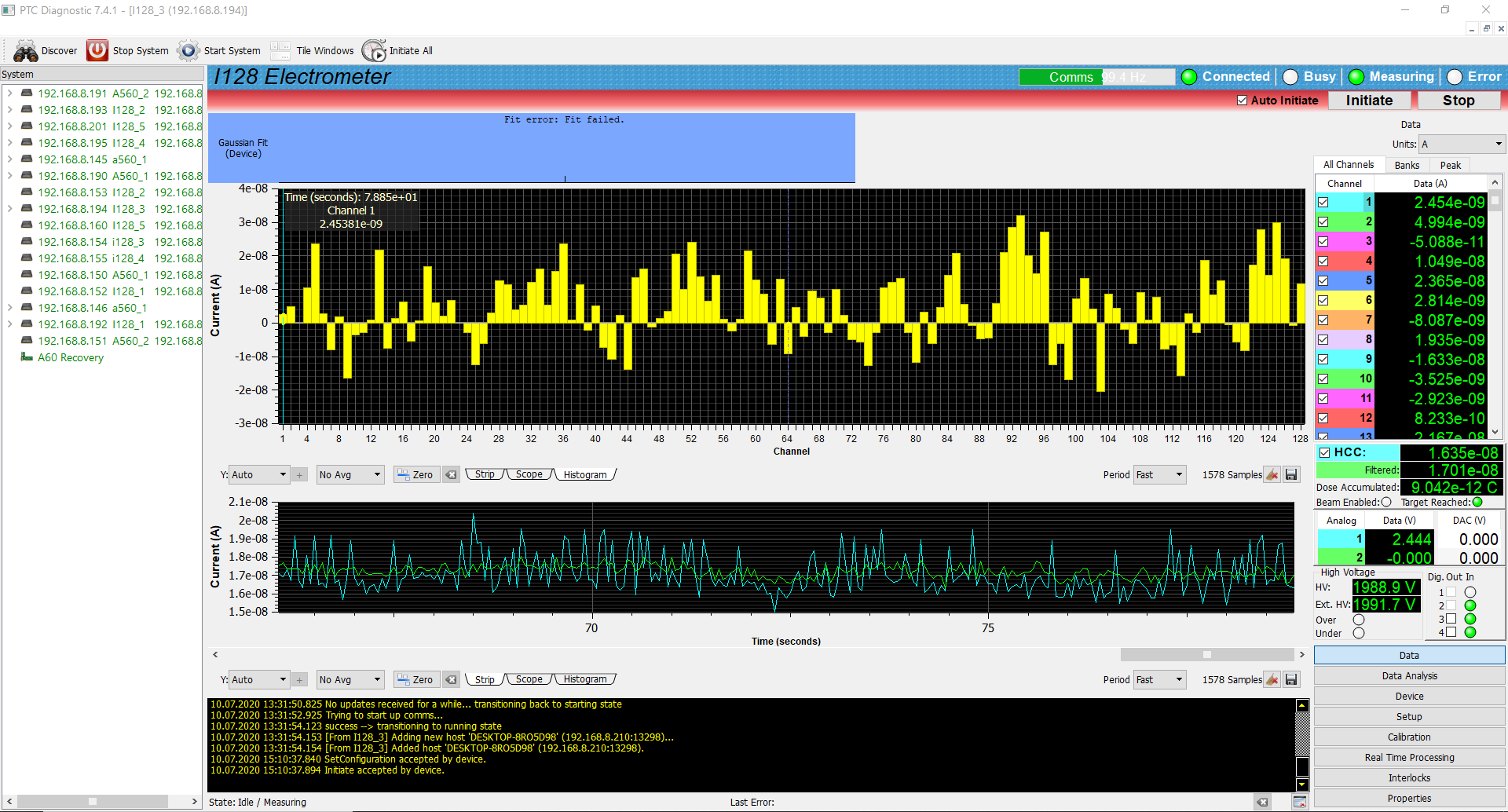

• Automatic network discovery: connected devices populate a single system tree, organized by unit
• Live All-Channels, Banks, and Peak views of current and charge data, per device
• Strip, scope, and histogram plotting for time-resolved signal inspection
• Real-time dose accumulation and target tracking alongside high-voltage and digital I/O status
• Dedicated Calibration, Real-Time Processing, and Interlocks panels for full device configuration
• Start, stop, and initiate an entire system of devices from one toolbar

Supported Products

A360, A500, A560, M10, M40, N2400, F3200E, F460, I128, I6400, I3200, IC101, C400, H20, I200, I400, I404

Installation Notes

You must uninstall any and all previous versions of PTCDiagnosticG2 before installing a new version.
