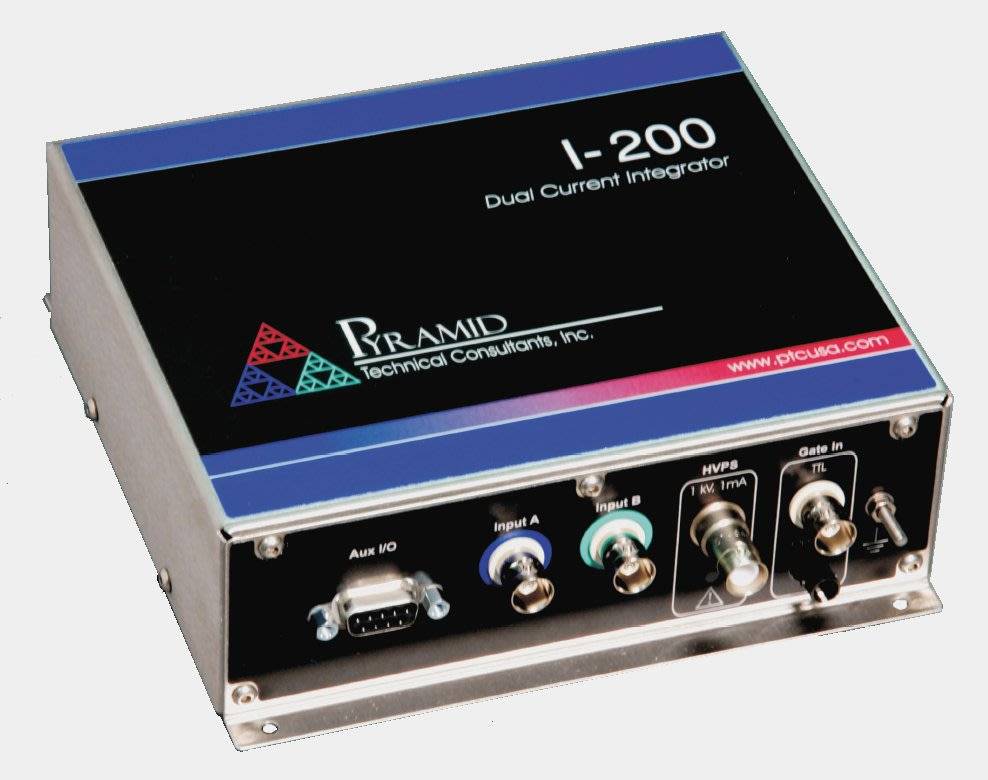

I200 - 2x Charge Integrator
Mô tả
The I200 is a two-channel digital electrometer built around independent gated integrator channels, each covering a dynamic range from 0.1pA to 100µA. Dual feedback capacitors on each channel are software-selectable in real time (10pF and 1000pF by default, with alternate values available as a build option), and integration time is adjustable from 20 microseconds to 10 seconds across continuous, charge-accumulation, or triggered-burst modes.
Input noise is under 200fA rms and offset under 10pA (typically under 3pA), with external accuracy better than 0.5% of full scale after calibration against the built-in current source. Five trigger modes, from free-running internal autorun to external start/stop/hold and remote message triggering, cover everything from continuous monitoring to precisely gated single-shot measurements.
An optional integrated PID servo controller extends the I200 into closed-loop stabilization applications: it can drive a 0 to 10V analog output at up to 200Hz based on any of five process variable functions of the two input channels (I1, I1/I2, I1+I2, I1-I2, or (I1-I2)/(I1+I2)), with automated peak-scan, peak-spectrum-upload, and servo-suspension functions built in. This is commonly used to stabilize double-crystal monochromators on synchrotron beamlines by controlling the crystal cage piezo amplifier, or to hold beam position steady in charged particle or photon beamlines.
Communication is available over RS-232, USB, or a 10Mbit/sec fiber-optic loop using ST bayonet connectors compatible with 1mm plastic optical fiber or 200µm HCS fiber, with Ethernet access to the host through an A300 or A500 loop controller. An optional auxiliary high voltage supply (0 to 1000V, polarity and maximum voltage set at the factory) is available for biasing ionization chambers or similar detectors.
Features
- Two independent gated integrator channels, dynamic range 0.1pA to 100µA
- Dual software-selectable feedback capacitors per channel (10pF/1000pF default)
- Integration time 20µs to 10s; continuous, charge-accumulation, or triggered-burst modes
- Five trigger modes including external start/stop/hold and remote message triggering
- External accuracy better than 0.5% of full scale after calibration
- Optional integrated PID servo controller, five process-variable functions, up to 200Hz, 0-10V analog output
- Optional auxiliary HV supply, 0-1000V, factory-set polarity and range
- RS-232, USB, and fiber-optic loop (ST bayonet, 1mm plastic fiber or 200µm HCS fiber) interfaces
- Compact stainless-steel chassis, 1.64kg
Applications
- Ionization chambers
- Two-electrode beam position monitors
- Photodiodes
- Ultra-low current and charge measurement
- With servo control option: double-crystal monochromator stabilization on synchrotron beamlines, and beam position stabilization in charged particle or photon beamlines
Integrated High Voltage
- Avoids the need for a separate external HV supply.
- Precise programmable voltage control.
- Choice of polarity, positive or negative, and range up to 3000V depending on the product.
- Shared ground with measurement electronics to eliminate ground loops.
- Short circuit protection and redundant output voltage monitoring.
Fiber Optics
Pyramid transmits measurement data over fiber-optic cable instead of copper, keeping signals immune to electrical interference. Our radiation-hard fibers have minimal light attenuation, enabling fast, reliable messaging across enormous distances.
IG2 EPICS Support
Integrate device data collection and configuration into an EPICS system, without writing a single line of code using IG2.
- Runs on Windows and Debian Linux
- Change PV names with simple XML configuration
- Connect to multiple Pyramid devices at once
- Add custom scale factors and offsets on a PV basis
- Never have to recompile
- Professional Pyramid support for bugs and features
