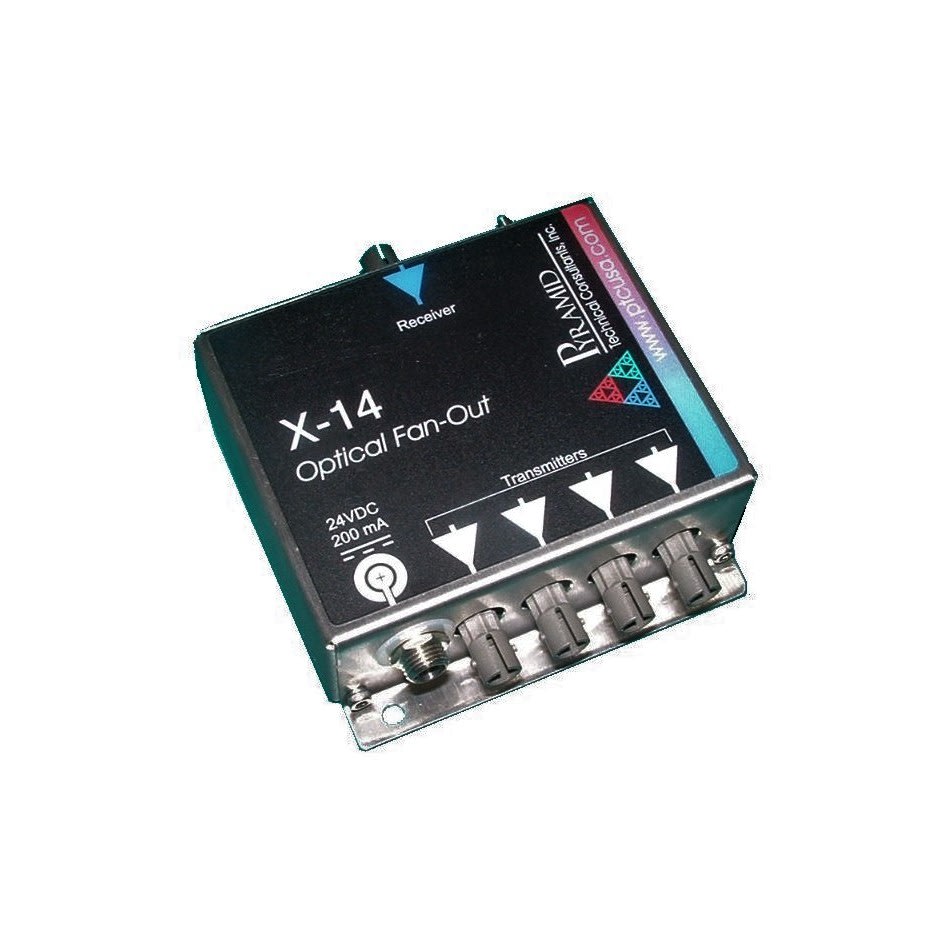

X14 - 1:4 Fiber-Optic Trigger Fanout
Mô tả
The X14 is a one-to-four fiber-optic fan-out type device. It receives a single optical level and repeats that signal to 4 separate outputs with minimal latency added. The X14 is intended to help system designers spread out a single trigger or synchronization signal to multiple destinations.
For unidirectional TTL to fiber applications that can drive 30mA the TF1 may be a simpler choice.
If your application requires bidirectional conversion see the X22 device.
Features
- 1:4 fiber-optic fanout
- ST type fiber-optic connectors
- Very low 150 nanosecond latency (130ns rising, 140ns falling)
- Robust stainless-steel chassis
- DIN rail mounting options
- Compact and cost-effective
Applications
- Trigger signal distribution
- Logic level distribution in electrically noisy environments
- High voltage optical isolation
